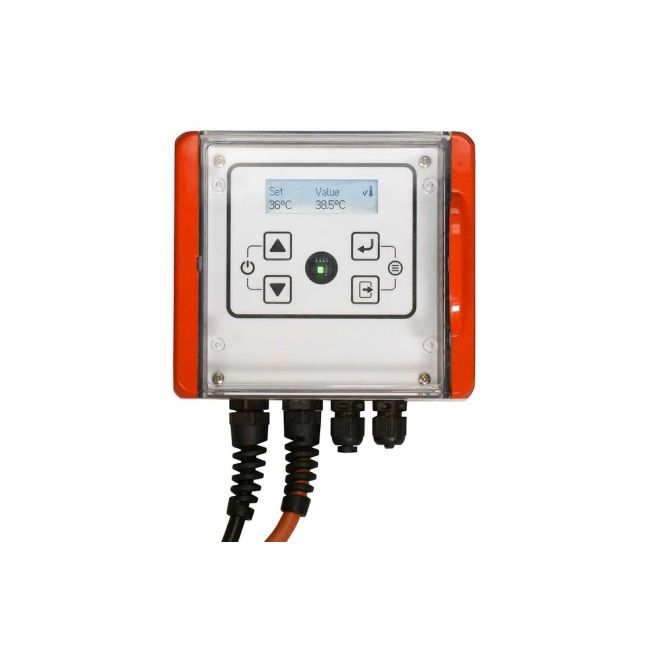

BRISKHEAT BH-510 WET AREA TEMPERATURE CONTROLLER

Series 510 Wall Mounted Temperature Controller. 90 - 260 VAC. Max Output 16 A. Configurable Temperature Sensor. Dimensions 151 mm x 125 mm wide x 60 mm high (6 in x 4.9 in x 2.38 in). 4-key Touchpad Programming with LCD Display. 3-Color LED Status Indicator. Fast-Adaptive-Tuning Control. Wide Range Temperature Control Based on Sensor Selection. Maximum Operating Exposure Temperature -20°C to 50°C. M16 Cable Glands for Input and Output Cable. M12 Cable Glands for Sensors. Remote Control Unit for Programming Optional. IP65 Enclosure. CE


BriskHeat
from BriskHeat

$326.00
BRISKHEAT BH-510 WET AREA TEMPERATURE CONTROLLER is available to buy in increments of 1

Series 510 Wall Mounted Temperature Controller. 90 - 260 VAC. Max Output 16 A. Configurable Temperature Sensor. Dimensions 151 mm x 125 mm wide x 60 mm high (6 in x 4.9 in x 2.38 in). 4-key Touchpad Programming with LCD Display. 3-Color LED Status Indicator. Fast-Adaptive-Tuning Control. Wide Range Temperature Control Based on Sensor Selection. Maximum Operating Exposure Temperature -20°C to 50°C. M16 Cable Glands for Input and Output Cable. M12 Cable Glands for Sensors. Remote Control Unit for Programming Optional. IP65 Enclosure. CE

  • Input Voltage: 90—260 VAC, 50—60 HZ
  • Max Amp Load: Unfused line up to 16 amps; fused line up to 10 amps; 16 amps with external fuse
  • Temperature Control Range:
    • Type-K Thermocouple: -200°C to 1350°C (-328°F to 2462°F)
    • PT100-RTD: -120°C to 850°C (-184°F to 1562°F)
  • Temperature Display Units: °C or °F
  • Sensor Input: Type-K, Type-J, Type-E, Type-N Thermocouples; PT100, PT1000 RTD
  • Accuracy: +/-2°C up to 700°C (<0.5% scale)
  • Programming Languages: English, German, French, Spanish and Japanese
  • Display: LCD graphic display with 3-color LED for signaling of operating conditions
  • Sensor input options: Type-K thermocouple, PT100-RTD or PT1000-RTD Auto-detected, other thermocouples types available
  • Operation: FAT, Fast-Adaptive-Tuning
  • Input/Output Connections: Plastic strain reliefs for sealing around cords and sensors
  • Safety Features:
    • All inputs potential-free with sensor break detection
    • Hybrid Relay with safety-shutdown-relay (breaks heating power circuit on failure)
    • Unfused connection requires external protection from overload or over-current
  • Environmental Exposure:
    • Operating range: -20°C to 50°C (-4°F to 122°F)
    • Storage range: -20° C to 85°C (-4° F to 185°F)
    • Relative humidity: < 90% non-condensing temperatures
  • Enclosure Dimensions: 151 mm x 125 mm x 60 mm (5.94 in x 4.92 in x 2.36 in)
  • Enclosure Protection: IP65 (cover closed)
