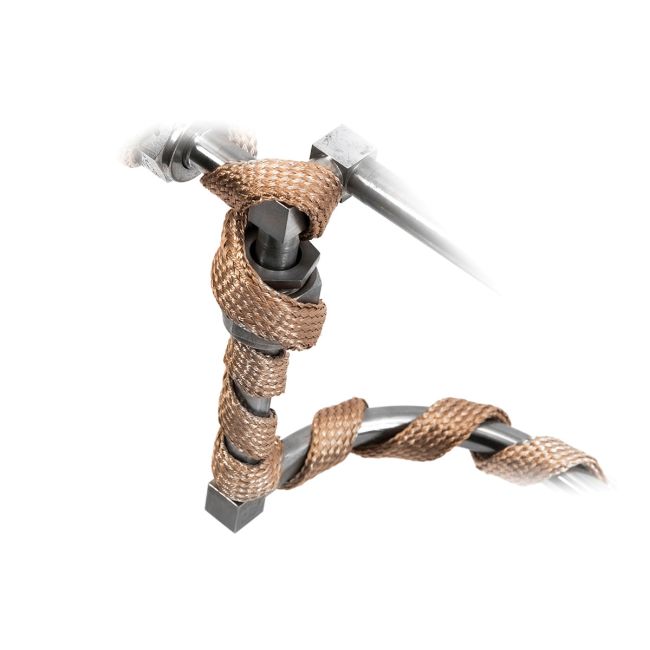

Briskheat Heavy Insulated Heating Tapes (BIH)
As low as $59.75
BIH Heavy Insulated Heating Tapes
- Fiberglass outer sheath provides electrical insulation for safe use with electrically conductive surfaces.
- Rapid thermal response provides accurate heat when you need it.
- Available in a wide variety of length and width configurations.
- Ideal for laboratory heating applications for apparatus, gas tubing, temporary heat, valves, and more.
- Safe for use with glass and electrically conductive metal surfaces.
- Includes 9" (230mm) long high temperature tie downs for safe and easy installation.
- Temperature controller is required for safe operation of this product.
- Built-in split-plug design easily connects to your choice of temperature controlling device.
from BriskHeat
| Price | UOM | Part Number | Voltage | Width | Length | Wattage |
| $59.75 | EA | BIH051020L | 120 | 0.50 in (13 mm) | 2 ft (0.6 m) | 105 |
| $59.75 | EA | BIH052020L | 240 | 0.50 in (13 mm) | 2 ft (0.6 m) | 105 |
| $63.00 | EA | BIH051040L | 120 | 0.50 in (13 mm) | 4 ft (1.2 m) | 210 |
| $63.00 | EA | BIH052040L | 240 | 0.50 in (13 mm) | 4 ft (1.2 m) | 210 |
| $80.75 | EA | BIH051060L | 120 | 0.50 in (13 mm) | 6 ft (1.8 m) | 310 |
| $80.75 | EA | BIH052060L | 240 | 0.50 in (13 mm) | 6 ft (1.8 m) | 313 |
| $99.25 | EA | BIH051080L | 120 | 0.50 in (13 mm) | 8 ft (2.4 m) | 420 |
| $99.25 | EA | BIH052080L | 240 | 0.50 in (13 mm) | 8 ft (2.4 m) | 420 |
| $125.00 | EA | BIH051100L | 120 | 0.50 in (13 mm) | 10 ft (3.0 m) | 520 |
| $125.00 | EA | BIH052100L | 240 | 0.50 in (13 mm) | 10 ft (3.0 m) | 520 |
| $150.00 | EA | BIH051120L | 120 | 0.50 in (13 mm) | 12 ft (3.7 m) | 620 |
| $150.00 | EA | BIH052120L | 240 | 0.50 in (13 mm) | 12 ft (3.7 m) | 620 |
| $63.00 | EA | BIH101010L | 120 | 1.00 in (25 mm) | 1 ft (0.3 m) | 105 |
| $80.75 | EA | BIH101020L | 120 | 1.00 in (25 mm) | 2 ft (0.6 m) | 210 |
| $80.75 | EA | BIH102020L | 240 | 1.00 in (25 mm) | 2 ft (0.6 m) | 210 |
| $93.00 | EA | BIH101040L | 120 | 1.00 in (25 mm) | 4 ft (1.2 m) | 420 |
| $93.00 | EA | BIH102040L | 240 | 1.00 in (25 mm) | 4 ft (1.2 m) | 418 |
| $116.00 | EA | BIH101060L | 120 | 1.00 in (25 mm) | 6 ft (1.8 m) | 620 |
| $116.00 | EA | BIH102060L | 240 | 1.00 in (25 mm) | 6 ft (1.8 m) | 620 |
| $137.00 | EA | BIH101080L | 120 | 1.00 in (25 mm) | 8 ft (2.4 m) | 830 |
| $137.00 | EA | BIH102080L | 240 | 1.00 in (25 mm) | 8 ft (2.4 m) | 830 |
| $150.00 | EA | BIH101100L | 120 | 1.00 in (25 mm) | 10 ft (3.0 m) | 1045 |
| $150.00 | EA | BIH102100L | 240 | 1.00 in (25 mm) | 10 ft (3.0 m) | 1045 |
| $165.00 | EA | BIH101120L | 120 | 1.00 in (25 mm) | 12 ft (3.7 m) | 1250 |
| $165.00 | EA | BIH102120L | 240 | 1.00 in (25 mm) | 12 ft (3.7 m) | 1250 |
| $131.00 | EA | BIH171020L | 120 | 1.75 in (44 mm) | 2 ft (0.6 m) | 210 |
| $131.00 | EA | BIH172020L | 240 | 1.75 in (44 mm) | 2 ft (0.6 m) | 209 |
| $193.00 | EA | BIH171040L | 120 | 1.75 in (44 mm) | 4 ft (1.2 m) | 418 |
| $193.00 | EA | BIH172040L | 240 | 1.75 in (44 mm) | 4 ft (1.2 m) | 418 |
| $259.00 | EA | BIH171060L | 120 | 1.75 in (44 mm) | 6 ft (1.8 m) | 627 |
| $259.00 | EA | BIH172060L | 240 | 1.75 in (44 mm) | 6 ft (1.8 m) | 627 |
| $301.00 | EA | BIH171080L | 120 | 1.75 in (44 mm) | 8 ft (2.4 m) | 836 |
| $301.00 | EA | BIH172080L | 240 | 1.75 in (44 mm) | 8 ft (2.4 m) | 836 |
| $351.00 | EA | BIH171100L | 120 | 1.75 in (44 mm) | 10 ft (3.0 m) | 1045 |
| $351.00 | EA | BIH172100L | 240 | 1.75 in (44 mm) | 10 ft (3.0 m) | 1040 |
| $187.00 | EA | BIH251020L | 120 | 2.50 in (64 mm) | 2 ft (0.6 m) | 313 |
| $187.00 | EA | BIH252020L | 240 | 2.50 in (64 mm) | 2 ft (0.6 m) | 313 |
| $279.00 | EA | BIH251040L | 120 | 2.50 in (64 mm) | 4 ft (1.2 m) | 627 |
| $279.00 | EA | BIH252040L | 240 | 2.50 in (64 mm) | 4 ft (1.2 m) | 627 |
| $387.00 | EA | BIH251060L | 120 | 2.50 in (64 mm) | 6 ft (1.8 m) | 940 |
| $387.00 | EA | BIH252060L | 240 | 2.50 in (64 mm) | 6 ft (1.8 m) | 940 |
| $393.00 | EA | BIH251080L | 120 | 2.50 in (64 mm) | 8 ft (2.4 m) | 1254 |
| $393.00 | EA | BIH252080L | 240 | 2.50 in (64 mm) | 8 ft (2.4 m) | 1254 |
| $543.00 | EA | BIH251100L | 120 | 2.50 in (64 mm) | 10 ft (3.0 m) | 1567 |
| $543.00 | EA | BIH252100L | 240 | 2.50 in (64 mm) | 10 ft (3.0 m) | 1567 |
| $217.00 | EA | BIH321020L | 120 | 3.25 in (83 mm) | 2 ft (0.6 m) | 418 |
| $217.00 | EA | BIH322020L | 240 | 3.25 in (83 mm) | 2 ft (0.6 m) | 418 |
| $316.00 | EA | BIH321040L | 120 | 3.25 in (83 mm) | 4 ft (1.2 m) | 836 |
| $365.00 | EA | BIH321060L | 120 | 3.25 in (83 mm) | 6 ft (1.8 m) | 1254 |
| $365.00 | EA | BIH322060L | 240 | 3.25 in (83 mm) | 6 ft (1.8 m) | 1254 |
| $501.00 | EA | BIH321080L | 120 | 3.25 in (83 mm) | 8 ft (2.4 m) | 1672 |
| $501.00 | EA | BIH322080L | 240 | 3.25 in (83 mm) | 8 ft (2.4 m) | 1672 |
| $537.00 | EA | BIH321100L | 120 | 3.25 in (83 mm) | 10 ft (3.0 m) | 2090 |
| $537.00 | EA | BIH322100L | 240 | 3.25 in (83 mm) | 10 ft (3.0 m) | 2090 |
Only %1 left
SKU
BIH
BIH Heavy Insulated Heating Tapes
Overview:
- Fiberglass outer sheath provides electrical insulation for safe use with electrically conductive surfaces.
- Rapid thermal response provides accurate heat when you need it.
- Available in a wide variety of length and width configurations.
- Ideal for laboratory heating applications for apparatus, gas tubing, temporary heat, valves, and more.
- Safe for use with glass and electrically conductive metal surfaces.
- Includes 9" (230mm) long high temperature tie downs for safe and easy installation.
- Temperature controller is required for safe operation of this product.
- Built-in split-plug design easily connects to your choice of temperature controlling device.
- Maximum exposure temperature: 900°F (482°C)
- Construction:
- Fiberglass knit and braided heating element
- Fiberglass knit and braided outer sheath
- Power density:
- Standard: 8.6 W/in2 (0.013 W/mm2 )
- Wide† : 5.1 watts/in2 (0.008 watts/mm2)
- 24" (610mm) power leads with:
- 120VAC: Separable standard 2-prong power plug (NEMA 1-15)
- 240VAC: Bare wire connection
-
,
Accessories - X2 Digital PID Benchtop Temperature Controller
BriskHeat® X2 Benchtop PID Digital Temperature Controller is designed for general purpose use in indoor environments to control temperatures on applications requiring automatic control. The controller provides a simple three-key user control and a plug-and-play set-up.- Key User Features:
- Compact, plug and play design: 6.39" W x 9.48"D x 1.99"H
- Simple, three-key user control
- Programmable temperature range: 32°F to 1400°F (0°C to 760°C)
- Accuracy: Type-J +/- 0.9°F (0.50°C) Type-K +/- 0.5°F (0.25°C)
- Programmable in either °C or °F
- Auto / manual control ability
- Advanced PID control
- Alarm and Protection Features:
- User programmable alarm types, including latching options
- Programmable security lock levels
- Fused input
- Sensor break protection with average output options which allows process to continue heating
- Sensor Input: Type J or K thermocouple
from BriskHeat
| Manufacturer | Therm-x |
|---|---|
| Child Skus | BIH051020L,BIH052020L,BIH051040L,BIH052040L,BIH051060L,BIH052060L,BIH051080L,BIH052080L,BIH051100L,BIH052100L,BIH051120L,BIH052120L,BIH101010L,BIH101020L,BIH102020L,BIH101040L,BIH102040L,BIH101060L,BIH102060L,BIH101080L,BIH102080L,BIH101100L,BIH102100L,BIH101120L,BIH102120L,BIH171020L,BIH172020L,BIH171040L,BIH172040L,BIH171060L,BIH172060L,BIH171080L,BIH172080L,BIH171100L,BIH172100L,BIH251020L,BIH252020L,BIH251040L,BIH252040L,BIH251060L,BIH252060L,BIH251080L,BIH252080L,BIH251100L,BIH252100L,BIH321020L,BIH322020L,BIH321040L,BIH321060L,BIH322060L,BIH321080L,BIH322080L,BIH321100L,BIH322100L |
| Part Number | DHCS10A |
| Part Number | FFSL1-6 |
