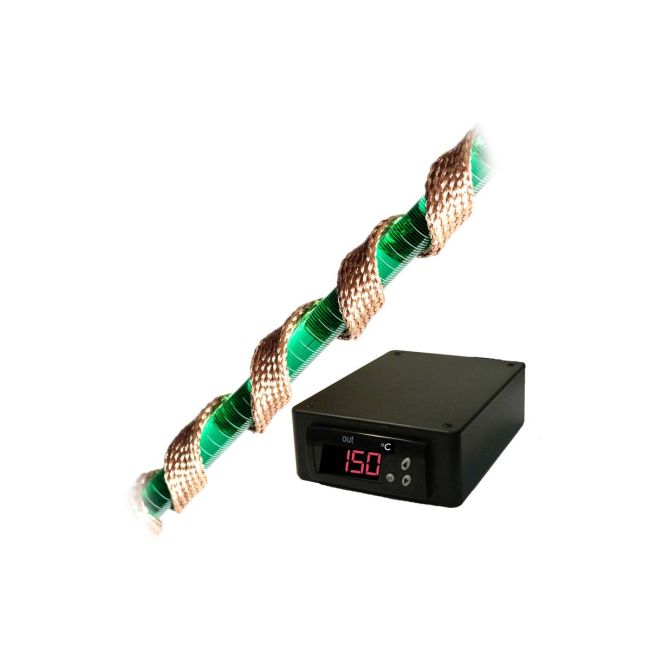

Briskheat Heavy Insulated Heating Tape (BIH) with SDC Digital Temperature Controller J-Type Thermocouple
Briskheat High-Temperature Heavy Insulated (BWH) Heating Tape with SDC Digital Temperature Controller J-Type Thermocouple
Briskheat Heavy Insulated Heating Tape (BIH) with SDC Digital Temperature Controller K-Type Thermocouple
Heavy Insulated Heating Tape (BIH) with SDC Digital Temperature Controller (Special Bundle Price); K-Type Thermocouple
- High-temperature fiberglass heating tape with maximum exposure temperatures up to 900°F (482°C).
- Multi-stranded resistance wire heating element provides exceptional flexibility and durability.
- Fiberglass outer sheath provides electrical insulation for safe use with electrically conductive surfaces.
- Rapid thermal response provides accurate heat when you need it.
- Available in a wide variety of length and width configurations.
- Ideal for laboratory heating applications for apparatus, gas tubing, temporary heat, valves, and more.
- Safe for use with glass and electrically conductive metal surfaces.
- Choice of power leads on same end or opposite ends to suit your electrical needs.
- Includes 9" (230mm) long high temperature tie downs for safe and easy installation.
- Temperature controller is required for safe operation of this product.
- Built-in split-plug design easily connects to your choice of temperature controlling device.
from BriskHeat
Briskheat Heavy Insulated Heating Tape (BIH) with SDC Digital Temperature Controller K-Type Thermocouple is available to buy in increments of 1
Heavy Insulated Heating Tape (BIH) with SDC Digital Temperature Controller (Special Bundle Price); K-Type Thermocouple
Overview:
BIH Heating Tape:
- High-temperature fiberglass heating tape with maximum exposure temperatures up to 900°F (482°C).
- Multi-stranded resistance wire heating element provides exceptional flexibility and durability.
- Fiberglass outer sheath provides electrical insulation for safe use with electrically conductive surfaces.
- Rapid thermal response provides accurate heat when you need it.
- Available in a wide variety of length and width configurations.
- Ideal for laboratory heating applications for apparatus, gas tubing, temporary heat, valves, and more.
- Safe for use with glass and electrically conductive metal surfaces.
- Choice of power leads on same end or opposite ends to suit your electrical needs.
- Includes 9" (230mm) long high temperature tie downs for safe and easy installation.
- Temperature controller is required for safe operation of this product.
- Built-in split-plug design easily connects to your choice of temperature controlling device.
SDC Digital Benchtop Temperature Controller:
- Compact, digital on/off temperature controller
- Easily programmable (°C or °F)
- Compatible with a wide range of heaters and applications
- Fused output for added safety
- Includes factory installed thermocouple sensor
Specifications:
BIH Heating Tape:
- Maximum exposure temperature: 900°F (482°C)
- Construction:
- Fiberglass knit and braided heating element
- Fiberglass knit and braided outer sheath
- Power density:
- Standard: 8.6 W/in2 (0.013 W/mm2 )
- 24" (610mm) power leads with:
- 120VAC: Separable standard 2-prong power plug (NEMA 1-15)
- 240VAC: Bare wire connection
SDC Digital Benchtop Temperature Controller:
- Temperature control range: 0°C to 600°C or 32°F to 999°F
- Input power cord length: 5ft (1.5m)
- Output power cord length: 5ft (1.5m)
- Thermocouple length: 5ft (1.5m)
- 10A Fused output
from BriskHeat
More Information Manufacturer | BriskHeat |
Child Skus | SDCKFA-BIH051020L-1,SDCKCA-BIH051020L-1,SDCKFA-BIH051040L-1,SDCKCA-BIH051040L-1,SDCKFA-BIH051060L-1,SDCKCA-BIH051060L-1,SDCKFA-BIH051080L-1,SDCKCA-BIH051080L-1,SDCKFA-BIH051100L-1,SDCKCA-BIH051100L-1,SDCKFA-BIH051120L-1,SDCKCA-BIH051120L-1,SDCKFA-BIH101010L-1,SDCKCA-BIH101010L-1,SDCKFA-BIH101040L-1,SDCKCA-BIH101040L-1,SDCKFA-BIH101060L-1,SDCKCA-BIH101060L-1,SDCKFA-BIH101080L-1,SDCKCA-BIH101080L-1,SDCKFA-BIH101100L-1,SDCKCA-BIH101100L-1,SDCKFA-BIH101020L-1,SDCKCA-BIH101020L-1 |
Part Number | DHCS10A |
Part Number | FFSL1-6 |
