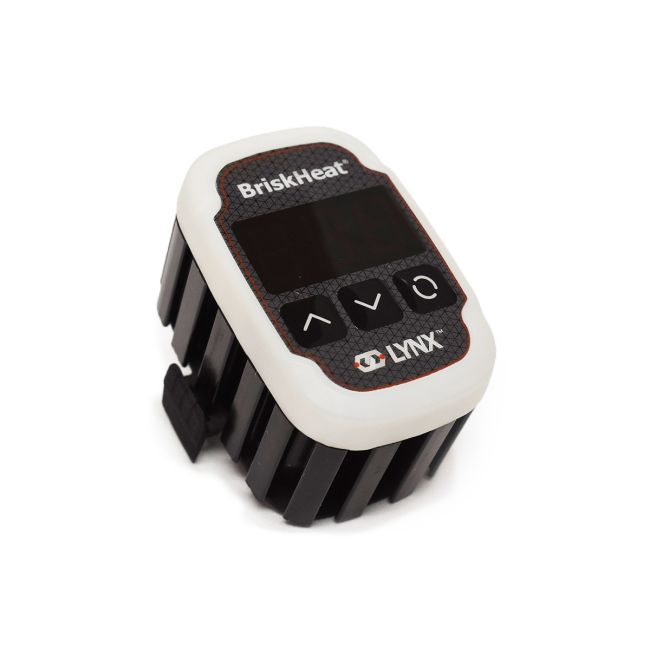

BRISKHEAT LYNX™ TEMPERATURE CONTROL MODULE

LYNX™ has the flexibility to be used in a variety of applications with a wide range of heating products.

BriskHeat
from BriskHeat

$110.00
BRISKHEAT LYNX™ TEMPERATURE CONTROL MODULE is available to buy in increments of 1

LYNX™ has the flexibility to be used in a variety of applications with a wide range of heating products.

Specifications:

Voltage: 100 – 277 VAC
Max. Amp Load: 7 amp at 25°C (77°F) ambient; 4 amp at 40°C (104°F)
Temperature Control Range: 0°C to 600°C (0°F to 999°F)
Display: Red LEDs show current temperature in °F or °C
Sensor Input: Type-J and Type-K Thermocouples; PT100-RTD
Accuracy:

  • RTD: ±(0.25°C +0.125% of temperature in °C) (0.45°F + 0.125% of temperature in °F)
  • J Thermocouple: ±1.09°C (1.96°F)
  • K Thermocouple: ±1.13°C (2.03°F)

Alarms: Multi-color LED display with highly visible viewing
Power cord: Harness are sold separately; available in several lengths, with or without communications cable
Connections: Control modules require docking station (included with some heaters or separate harness for stand-alone use); see ordering information for options
Modbus: Modbus RTU cable is included on some power cord harnesses for communication to Operator Interface or CMS; Modbus TCP/IP connection on Operator Interface for communication to CMS
Enclosure Rating/Classification Designation:

  • Operator Interface: IP10
  • Docking Station and Control Module: IP 20

Environmental Exposures:

  • Altitude up to 2,000 m (6,562 ft)
  • Operating range: 5°C to 40°C (41°F to 104°F)
  • Storage range: -40°C to 60°C (-40°F to 140°F)
  • Relative humidity: up to 80% at 31°C (88°F) decreasing to 50% at 40°C (104°F)

Enclosure Dimensions:

  • Operator Interface: 276 mm wide x 229 mm high x 81 mm deep (10.9 in wide x 9.0 in high x 3.2 in deep)
  • Module: 49.5 mm wide x 75.4 mm high x 43.2 mm deep (1.95 in wide x 2.97 in high x 1.7 in deep)
