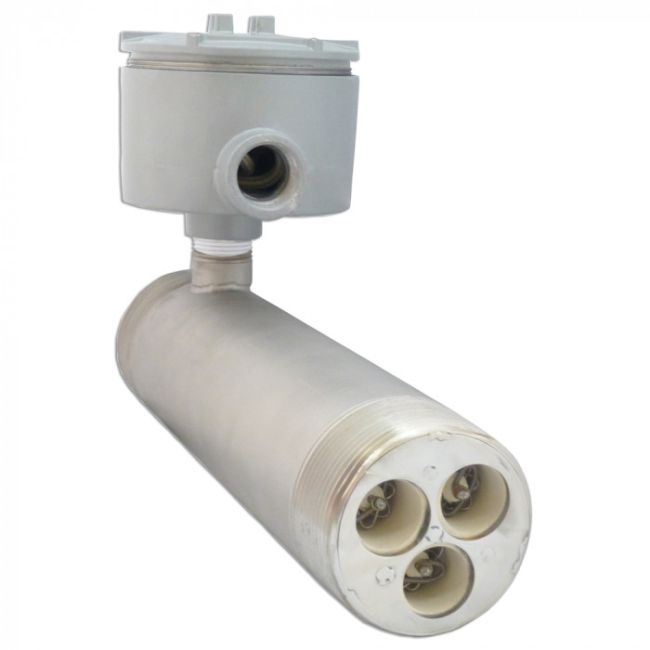

Convectronics 18,000W 240V 2-1/2" NPT High Volume In-Line Pipe Air Heater w/ Junction Box

Features:

• High volume flow – 60 SCFM(Pressure drop across heater is approximately 1.5 psi)
• Temperature – 1000°F maximum at outlet
• Power required – 18 KW at 240 volts 3 phase

Construction:

• Heater element – High temperature ferrous alloy
• Heater shell – 2-1/2” NPT type 304 stainless steel
• Junction box – Cast aluminum box – ¾” hub

Performance Characteristics:
A high volume air source (such as a regenerative blower) is connected to the 2-1/2” NPT inlet and a variable voltage source is connected to the elements via the junction box.
