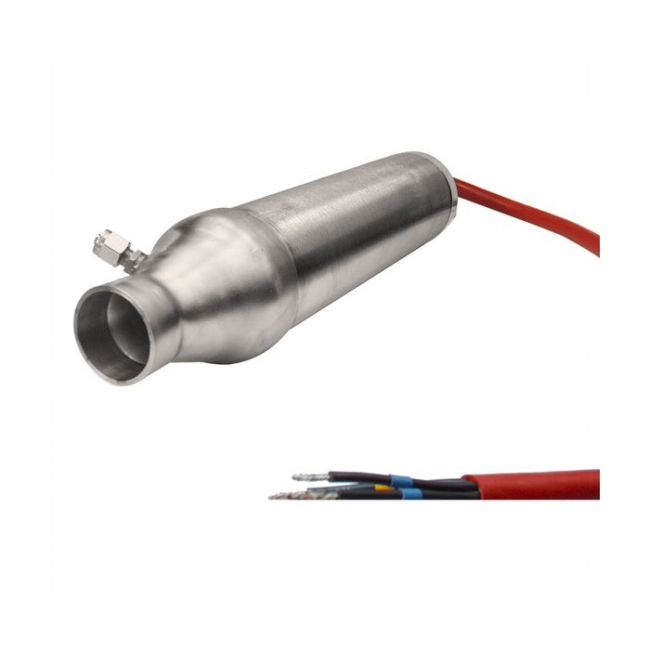

Convectronics Three Element Housing

Features:

• Triple Pass Stainless Steel Housing
• Replaceable Elements
• Choice of Wattage
• Can Be Wired Single or Three-Phase
• Built-In Thermocouple Port
• Flow Rates Up To 50 SCFM

The triple pass housing causes the air to be preheated prior to flowing through the elements resulting in a more efficient heater. The outer shell remains cool to the touch, making this product user friendly.

The elements can be replaced by removing the Rear Adaptor (2 screws), sliding the electrical leads off the Element Terminal Pins, removing the Element Retaining Screw, and sliding the three elements out of the housing. New elements are then installed by reversing the above sequence.

There are three different wattage elements that fit this housing:
Part # 003-10028 (3) 2,000 Watts/Element 240V6,000 Watts Total
Part # 003-10029 (3) 2,800 Watts/Element 240V8,400 Watts Total
Part # 003-10030 (3) 3,600 Watts/Element 240V 10,800 Watts Total

The element connections are brought out of the housing through a six conductor (Plus Ground) flexible cable. Each conductor is numbered and color coded so that they can easily be connected single or three-phase externally. The silicone jacketed cable is rated at 500 volts and 180°C.

The housing comes complete with a thermocouple port (3/16” Dia. compression fitting) and a plug if a thermocouple is not used. When using a thermocouple be sure to insert it to a depth that will center the junction over one of the elements. Use thermocouple #004-10037 (“K” type with 2 Ft. armor).
