Convectronics Flameless Electric Single Pass Quartz Tube Heaters

Convectronics Flameless Electric Air Heaters

Style 001 Performance Series

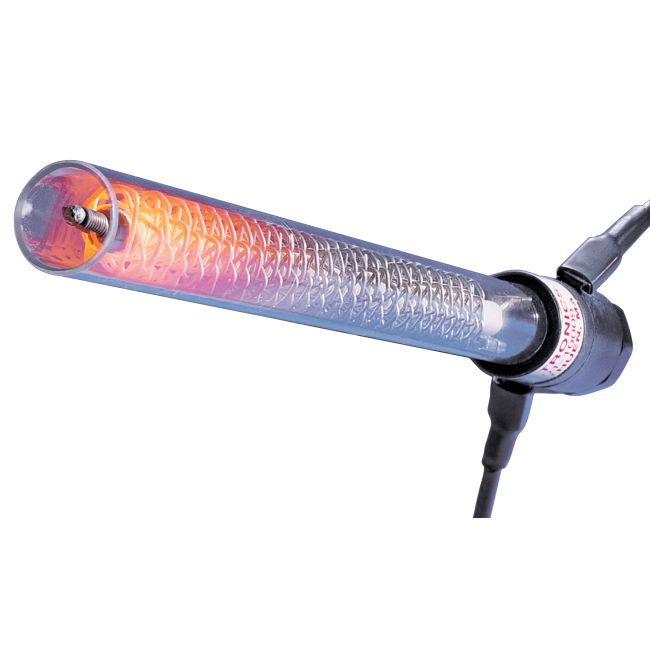

These Convectronics air heaters are high temperature air heaters designed to heat flowing air up to 1500°F. These highly efficient and fast response heaters can be accurately controlled with a variable voltage source or with automatic temperature controls.

Construction: High quality Fe-Cr-Al alloy designed for continuous element temperatures of 1950°F assures long life. The precisely-constructed element is supported on a steatite insulator and placed in a quartz or cordierite ceramic envelope to provide an extremely efficient heater.



Single Pass Electric Air Heater



Standard Outer Casing: Quartz.

Standard Tubing Adaptors: 1/4" NPT Female Thread for Use with a Compression Tube Fitting (Not Supplied). Also available with a PLAIN Tubing Adaptor (NO THREADS). This Adaptor Accepts a 3/8" OD Tube.


  Dimensions Wattage at Standard Voltages
Part Number Type A B C D 60 V 120V 240V Price
001-10001 OPEN 6.875" 8.25" 0.410" - 115 465 1850 $173.00
001-10002 NOZZLE 7.875" 9.25" 0.410" 0.065" 115 465 * $207.00
001-10003 OPEN 7.75" 9.125" 0.410" - 210 850 * $236.00
001-10004 NOZZLE 8.75" 10.125" 0.410" 0.065" 210 850 * $272.00
001-10005 OPEN 3.875" 5.25" 0.410" - 240 * * $155.00
001-10006 NOZZLE 4.875" 6.25" 0.410" 0.065" 240 * * $187.00
001-10007 OPEN 3.875" 5.25" 0.410" - 480 * * $223.00
001-10008 NOZZLE 4.875" 6.25" 0.410" 0.065" 480 * * $256.00
001-10009 OPEN 6.875" 8.25" 0.594" - 290 1150 4650 $285.00
001-10010 NOZZLE 7.875" 9.25" 0.594" 0.115" 290 1150 * $399.00



*Not recommended

Standard Wattage Tolerances +5% / -10%

Convectronics

As low as $155.00
Convectronics Flameless Electric Single Pass Quartz Tube Heaters is available to buy in increments of 1

Flameless Electric Single Pass Quartz Tube Heaters

Convectronics

More Information
Manufacturer
Convectronics
