HEAVY-DUTY SILICONE RUBBER DRUM/PAIL HEATERS (DHCS/DPCS)

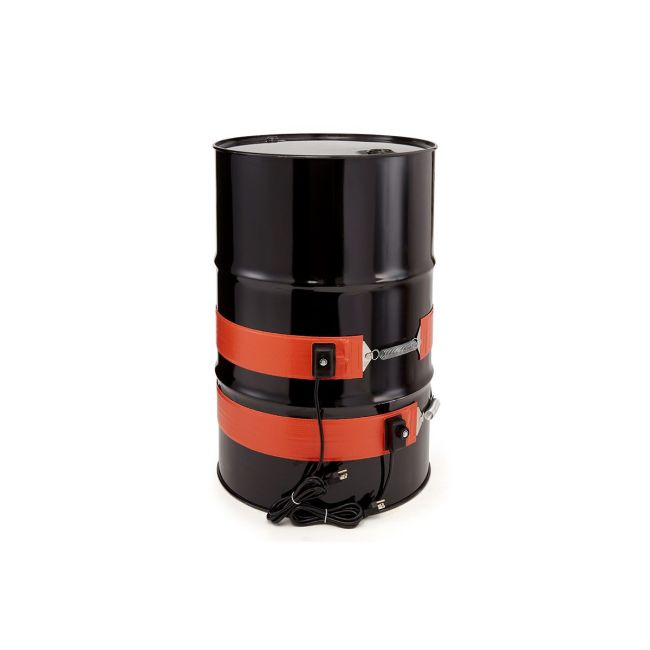

BriskHeat Heavy-Duty Drum/Pail Heaters
BriskHeat Drum and Pail Heaters are designed to provide practical, efficient means of freeze protection, viscosity control, and maintenance of materials at elevated temperatures. The DHCS Drum/Pail heaters are designed with two extra-thick layers of fiberglass reinforced silicone rubber for use on metal drums/pails.
- Improves flow and reduces viscosity levels of drum and pail contents.
- Easy to use – simple plug and play design
- Provides long service life and can be used in a wide variety of environments
- Adjustable thermostat – temperatures up to 160°F or 425°F (71°C or 218°C)
Stocked Part Numbers
SKU
DHCS/DPCS
HEAVY-DUTY SILICONE RUBBER DRUM/PAIL HEATERS (DHCS/DPCS) is available to buy in increments of 1
Additional Features:
Exceptional durability and flexibility for a wide range of poly and metal drum/pail heating applications
Extra wide 4 in (102 mm) surface coverage
Moisture and chemical resistant - IP54 rated
Grounded for safety - meets NEC 427.23
Heater Width: 4 in (102 mm)
Voltage Options: 120 VAC or 240 VAC
Exposure Temperature: -60°F to 450°F (-51°C to 232°C)
Dielectric Strength: Over 2000 Volts
Attachment Type: Expandable spring closure — expands up to 3 in (76 mm)
Silicone Rubber Density:
Heavy duty: 46.0 oz/yd² (1560 g/m²)
Extra heavy duty: 75.0 oz/yd² (2543 g/m²)
Power Cord: 6 ft (1.8 m) long with choice of plug
Standard 120 VAC: 3-prong grounded plug (NEMA 5-15P)
CSA/cURus approved 120 & 240 VAC: bare wire leads
IP Rating: IP54
* If precise temperature control is required for your application, please contact us or your local distributor for application assistance
**Heaters should always be placed below fill level of container
For other part numbers please inquire.
| Heavy Duty | Extra Heavy Duty | ||||||||||
| Part No. 120 VAC | Part No. 240 VAC | Part No. 120 VAC | Part No. 240 VAC | Drum Size gal (l) | Drum Diameter in | Drum Diameter mm | Heater Length in (mm) | Drum Typ | Adjustable Thermostat Range | Watt Density | Watts |
| DHCS10 | DHCS20 | DHCH10 | DHCH20 | 3.5 to 7 (13 to 26) | 11.1 to 12.1 | 282 to 307 | 35.0 (889) | Metal | Up to 425°F (218°C) | 5.0 watts/in2 (0.78 watts/cm2) | 550 |
| DHCS11 | DHCS21 | DHCH11 | DHCH21 | 15 to 16 (57 to 61) | 14.0 to 15.0 | 355 to 381 | 44.0 (1118) | Metal | Up to 425°F (218°C) | 5.0 watts/in2 (0.78 watts/cm2) | 700 |
| DHCS13 | DHCS23 | DHCH13 | DHCH23 | 30 (114) | 18.6 to 19.6 | 472 to 498 | 58.5 (1486) | Metal | Up to 425°F (218°C) | 5.0 watts/in2 (0.78 watts/cm2) | 1000 |
| DHCS15 | DHCS25 | DHCH15 | DHCH25 | 55 (200 - 208) | 22.3 to 23.2 | 566 to 589 | 70.0 (1778) | Metal | Up to 425°F (218°C) | 5.0 watts/in2 (0.78 watts/cm2) | 1200 |
| DHLS10 | DHLS20 | - | - | 3.5 to 7 (13 to 26) | 11.1 to 12.1 | 282 to 307 | 35.0 (889) | Metal | Up to 160°F (71°C) | 5.0 watts/in2 (0.78 watts/cm2) | 550 |
| DHLS11 | DHLS21 | - | - | 15 to 16 (57 to 61) | 14.0 to 15.0 | 355 to 381 | 44.0 (1118) | Metal | Up to 160°F (71°C) | 5.0 watts/in2 (0.78 watts/cm2) | 700 |
| DHLS13 | DHLS23 | - | - | 30 (114) | 18.6 to 19.6 | 472 to 498 | 58.5 (1486) | Metal | Up to 160°F (71°C) | 5.0 watts/in2 (0.78 watts/cm2) | 1000 |
| DHLS15 | DHLS25 | - | - | 55 (200 to 208) | 22.3 to 23.2 | 566 to 589 | 70.0 (1778) | Metal | Up to 160°F (71°C) | 5.0 watts/in2 (0.78 watts/cm2) | 1200 |
| DPCS10 | DPCS20 | DPCH10 | DPCH20 | 3.5 to 7 (13 to 26) | 11.1 to 12.1 | 282 to 307 | 35.0 (889) | Poly | Up to 160°F (71°C) | 1.25 watts/in2 (0.19 watts/cm2) | 150 |
| DPCS11 | DPCS21 | DPCH11 | DPCH21 | 15 to 16 (57 to 61) | 14.0 to 15.0 | 355 to 381 | 44.0 (1118) | Poly | Up to 160°F (71°C) | 1.25 watts/in2 (0.19 watts/cm2) | 208 |
| DPCS13 | DPCS23 | DPCH13 | DPCH23 | 30 (114) | 18.6 to 19.6 | 472 to 498 | 58.5 (1486) | Poly | Up to 160°F (71°C) | 1.25 watts/in2 (0.19 watts/cm2) | 250 |
| DPCS15 | DPCS25 | DPCH15 | DPCH25 | 55 (200 - 208) | 22.3 to 23.2 | 566 to 589 | 70.0 (1778) | Poly | Up to 160°F (71°C) | 1.25 watts/in2 (0.19 watts/cm2) | 300 |
More Information
| Child Skus | DHCS10, DHCS15, DPCS10, DPCS15 |
|---|
