SILICONE HEATING TAPE WITH PRESET THERMOSTAT (RKP)

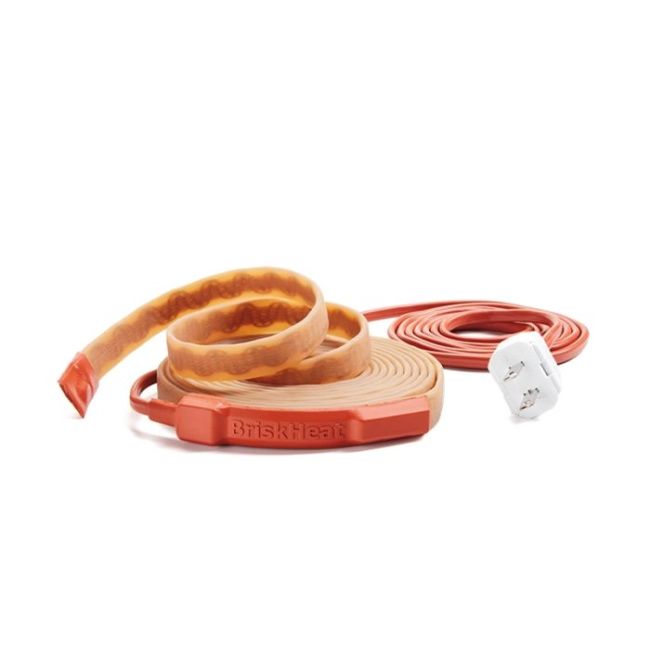

BriskHeat Silicone Heating Tape with Preset Thermostat
XtremeFLEX RKP Silicone Rubber Heating Tapes are a new solution to traditional heat trace cable. A portable, plug-and-play option ideal for freeze protection and process control heating applications.
The RKP heating tape has a low watt-density of 6W/ft to provide safe operation and avoid overheating.
- Standard lengths up to 200ft (61m); custom sizes and designs available
- Extremely flexible, durable, and versatile
- For indoor/outdoor use and wet-area locations
- Low profile design
- Suitable for electrically conductive metal surfaces
- Rapid thermal response provides accurate heat when you need it
Stocked Part Numbers
SKU
RKP-Series
SILICONE HEATING TAPE WITH PRESET THERMOSTAT (RKP) is available to buy in increments of 1
Temperature Control with Heating Tape and Preset Thermostat
Built-In Controlling Thermostat: 70°F or 122°F (21°C or 50°C)
Maximum Exposure Temperature: 450°F (232°C)
Outer Sheath: Silicone rubber extruded
Inner Construction: Fiberglass knitted and braided construction
Minimum Bend Radius: 0.25 in (6 mm)
Nominal Thickness: 0.125 in (3 mm)
Power Density: 1.0W/in² (0.2W/cm²)
Power Cord: 60 in (1.5 m) long with
120 VAC includes standard 2-prong plug (NEMA 1-15)
240 VAC has crimped ferrule leads
IP Rating: IP66
For other part numbers please inquire.
| Thermostat Setting 70°F (21°C) | Thermostat Setting 120°F (49°C) | |||||
| Part No. 120 VAC | Part No. 240 VAC | Part No. 120 VAC | Part No. 240 VAC | Width in (mm) | Length ft (m) | Watts |
| RKP1A0072 | RKP2A0072 | RKP1B0072 | RKP2B0072 | 0.5 (12.7) | 6 (1.8) | 50 |
| RKP1A0096 | RKP2A0096 | RKP1B0096 | RKP2B0096 | 0.5 (12.7) | 8 (2.4) | 55 |
| RKP1A0120 | RKP2A0120 | RKP1B0120 | RKP2B0120 | 0.5 (12.7) | 10 (3.1) | 60 |
| RKP1A0240 | RKP2A0240 | RKP1B0240 | RKP2B0240 | 0.5 (13) | 20 (6.1) | 120 |
| RKP1A0480 | RKP2A0480 | RKP1B0480 | RKP2B0480 | 0.5 (13) | 40 (12.2) | 240 |
| RKP1A0600 | RKP2A0600 | RKP1B0600 | RKP2B0600 | 0.5 (13) | 50 (15.2) | 300 |
| RKP1A0720 | RKP2A0720 | RKP1B0720 | RKP2B0720 | 0.5 (13) | 60 (18.3) | 360 |
| RKP1A0900 | RKP2A0900 | RKP1B0900 | RKP2B0900 | 0.5 (13) | 75 (22.9) | 450 |
| RKP1A0960 | RKP2A0960 | RKP1B0960 | RKP2B0960 | 0.5 (13) | 80 (24.4) | 480 |
| RKP1A1200 | RKP2A1200 | RKP1B1200 | RKP2B1200 | 0.5 (13) | 100 (30.5) | 600 |
| RKP1A1500 | RKP2A1500 | RKP1B1500 | RKP2B1500 | 0.5 (13) | 125 (38.1) | 750 |
| N/A | RKP2A1800 | N/A | RKP2B1800 | 0.5 (13) | 150 (45.7) | 900 |
| N/A | RKP2A2400 | N/A | RKP2B2400 | 0.5 (13) | 200 (61.0) | 1200 |
More Information
| Child Skus | RKP1B0120, RKP1B0240, RKP1B1200 |
|---|
