Therm-x Thermesthesiometer Kit w/o Calibration
Thermesthesiometers are burn injury measurement instruments designed to simulate temperature response of a human finger. Therm-x Thermesthesiometer Probe is built in accordance to NBS TN-816, "Engineering and Construction Manual for an Instrument to Make Burn Hazard Measurement in Consumer Products" (Marzett a 1974). A fine wire thermocouple for contact temperature measurement is precisely placed on the probe to simulate human touch. Probe body temperature is controlled with a temperature controller. Temperature controller maintains human body temperature using a secondary thermocouple.
Features
- Compact Size with Mobility and Flexibility
- Control and Heater Fuses
- Serial/Ethernet Communications Available
- Integrated EMO
XTMX3125 Thermesthesiometer Kit Includes
- Detachable Probe with Protection Cap P/N XTMS3125

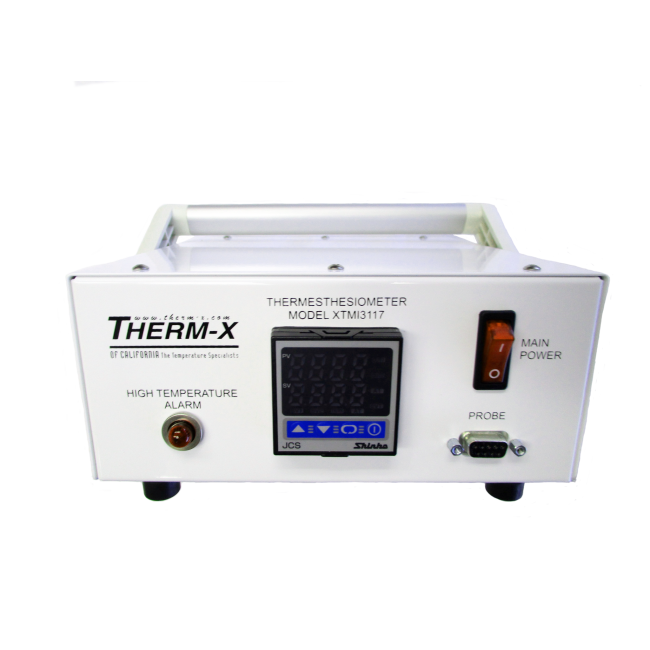

- Temperature Controller P/N XTMI3117
- Temperature Controller Cord
- Thermocouple Extension Cable for Data Logger
- Carrying Case
Lead Time
10 Business Days from Date of Approved Order
Thermesthesiometers are burn injury measurement instruments designed to simulate the temperature response of a human finger.
Key Points
- Surface temperature measurement is not sufficient in evaluating burn inury hazard. Burn injury caused by transfer of heat from material to human tissue is dependant on:
- Material Temperature
- Thermal Conductivity
- Specific Heat Capacity
- Density
- Thermesthesiometers are constructed with an encapsulated material that has similar thermal properties as human skin and tissue. The internal body of the probe is heated and temperature-controlled to simulate human body temperature. Contact temperature is measured using a thermocouple that is precisely positioned below the surface of the probe.
- Thermesthesiometer outputs transient response of contact temperature when probe is in contact with a hot surface.
