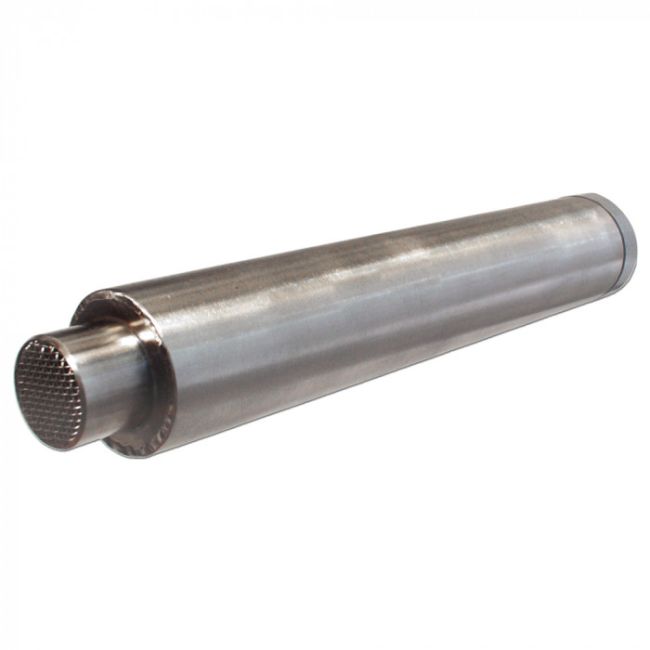

Convectronics Triple Pass Housings/Elements

Convectronics Flameless Electric Air Heaters

Style 003 Performance Series

These Convectronics air heaters are high temperature air heaters designed to heat flowing air up to 1500°F. These highly efficient and fast response heaters can be accurately controlled with a variable voltage source or with automatic temperature controls.

Construction: High quality Fe-Cr-Al alloy designed for continuous element temperatures of 1950°F assures long life. The precisely-constructed element is supported on a steatite insulator and placed in a quartz or cordierite ceramic envelope to provide an extremely efficient heater.

Exchanger Housings: Triple pass air flow for improved efficiency and cool outer shell.

For detailed specifications, see Product Features section below.

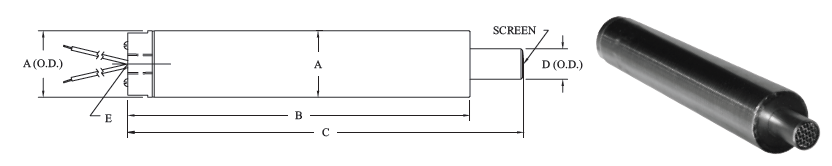

Triple Pass Electric Air Heater



Part# Sylvania# Type A B C D E Price
003-10026 029763 10" HOUSING 1-1/2" 9" 10" 11/16" 3/8" NPT $ 788.00
003-10027 057088 13" HOUSING 2-1/8" 11-7/8" 12-7/8" 1-3/8" 3/4" NPT $ 876.00



Heater Elements for Exchanger Housings - Standard Wattage Tolerances +5% / -10%

Triple Pass Heater Elements



Dimensions Wattage at standard voltages
Part# Sylvania# Type A B 60V 120V 240V Price
10"HOUSING
003-10028 029765 2000W 8-3/16" 5/8" 125 500 2000 $ 162.00
003-10029 029766 2800W 8-3/16" 5/8" 175 700 2800 $ 167.00
003-10030 029767 3600W 8-3/16" 5/8" 225 900 3600 $ 170.00
13"HOUSING
003-10031 040291 5000W 10-3/4" 1-1/4" 312 1250 5000 $ 461.00
003-10032 040292 6000W 10-3/4" 1-1/4" 375 1500 6000 $ 461.00

Direct replacements for sylvania air heaters. For performance characteristics, see Product Features section.

Lead Time

5 Business Days from Date of Approved Order

For expedited service, please contact Sales Department at (510) 606-1012

As low as $162.00
Convectronics Triple Pass Housings/Elements is available to buy in increments of 1

Style 003 Performance Series

This Convectronics air heater is designed to heat flowing air up to 1500°F. This highly efficient and fast response heater can be accurately controlled with a variable voltage source or with automatic temperature controls

Construction: High quality Fe-Cr-Al alloy designed for continuous element temperatures of 1950°F assures long life. The precisely-constructed element is supported on a steatite insulator and placed in a quartz or cordierite ceramic envelope to provide an extremely efficient heater..

Triple pass heat exchangers pre-heat air before passing through heating element. Plug-in socket connection allows for quick replacement. Sturdy stainless steel housing with protective outlet screen. User friendly because heat exchanger feature keeps outer shell cool to the touch 150 SCFH to 1500 SCFH. Direct replacement for a sylvania air heater.

Performance Characteristics

Select the triple pass heater that matches your application.

Triple Pass Performance Characteristics
