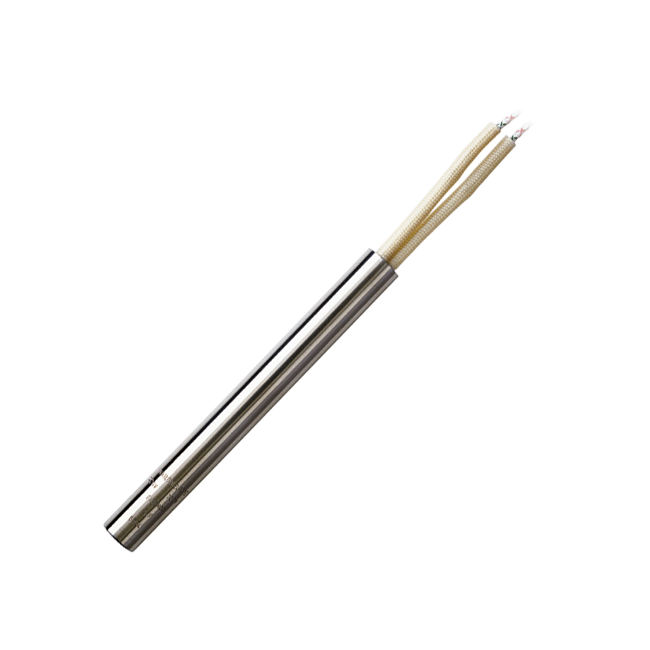

WATLOW 1/2'' DIAMETER CARTRIDGE HEATERS

Part Number:

Part Number Sheath Length (inch) Volts Watts Watt Density (W/in2) Approx. Net Wt. (lbs.) Price
J1A30 1 120 50 65 0.06 $25.55
J1A31 1 120 150 193 0.06 $25.55
J1E50 1 1/4 120 50 43 0.07 $27.05
J1E51 1 1/4 120 125 107 0.07 $25.60
J1E58 1 1/4 240 125 107 0.07 $25.60
J1E52 1 1/4 240 200 172 0.07 $25.60
J1E88 1 1/4 240 250 212 0.07 $25.60
J1J47 1 1/2 120 50 32 0.08 $26.10
J1J48 1 1/2 120 150 97 0.08 $26.10
J1J96 1 1/2 240 150 97 0.08 $26.10
J1J59 1 1/2 120 200 128 0.08 $26.10
J1J38 1 1/2 240 200 128 0.08 $26.10
J2A80 2 120 75 32 0.09 $26.30
J2A49 2 120 200 86 0.09 $26.30
J2A75 2 240 200 86 0.09 $26.30
J2A85 2 120 250 108 0.09 $26.30
J2A71 2 240 250 108 0.09 $26.30
J2A95 2 120 300 128 0.09 $26.30
J2A96 2 240 300 128 0.09 $26.30
J2A81 2 120 400 171 0.09 $26.30
J2A82 2 240 400 171 0.09 $26.30
J2E86 2 1/4 120 75 28 0.10 $27.25
J2E87 2 1/4 120 125 46 0.10 $27.25
J2E56 2 1/4 120 250 92 0.10 $27.25
J2E69 2 1/4 240 250 92 0.10 $27.25
J2E114 2 1/4 120 400 147 0.10 $27.25
J2E115 2 1/4 240 400 147 0.10 $27.25
J2E64 2 1/4 120 500 184 0.10 $27.25
J2E88 2 1/4 240 500 184 0.10 $27.25
J2J67 2 1/2 120 100 32 0.11 $27.95
J2J57 2 1/2 240 100 32 0.11 $27.95
J2J68 2 1/2 120 250 81 0.11 $27.95
J2J69 2 1/2 240 250 81 0.11 $27.95
J2J109 2 1/2 120 300 96 0.11 $27.95
J2J110 2 1/2 240 300 96 0.11 $27.95
J2J81 2 1/2 120 400 128 0.11 $27.95
J2J82 2 1/2 240 400 128 0.11 $27.95
J2J66 2 1/2 120 500 161 0.11 $27.95
J2J70 2 1/2 240 500 161 0.11 $27.95
J2N43 2 3/4 240 400 115 0.11 $28.85
J2N45 2 3/4 120 400 115 0.11 $28.85
J3A108 3 120 125 32 0.12 $29.65
J3A109 3 240 125 32 0.12 $29.65
J3A107 3 120 250 64 0.12 $29.65
J3A89 3 240 250 64 0.12 $29.65
J3A65 3 120 300 78 0.12 $29.65
J3A173 3 120 350 89 0.12 $31.10
J3A73 3 240 300 78 0.12 $29.65
J3A132 3 120 400 104 0.12 $29.65
J3A29 3 240 400 104 0.12 $29.65
J3A110 3 120 500 129 0.12 $29.65
J3A111 3 240 500 129 0.12 $29.65
J3A51 3 120 600 154 0.12 $29.65
J3A127 3 240 600 154 0.12 $29.65
J3A137 3 120 750 193 0.12 $29.65
J3A112 3 240 750 193 0.12 $29.65
J3A79 3 120 1000 254 0.12 $29.65
J3J44 3 1/2 120 250 54 0.14 $31.50
J3J64 3 1/2 240 250 54 0.14 $31.50
J3J65 3 1/2 240 350 75 0.14 $31.50
J3J45 3 1/2 120 500 107 0.14 $31.50
J3J46 3 1/2 240 500 107 0.14 $31.50
J3J63 3 1/2 240 750 162 0.14 $31.50
J4A117 4 120 150 28 0.15 $33.40
J4A122 4 240 150 28 0.15 $33.40
J4A118 4 120 250 46 0.15 $33.40
J4A90 4 240 250 46 0.15 $33.40
J4A63 4 120 300 56 0.15 $33.40
J4A26 4 240 300 56 0.15 $33.40
J4A1 4 120 350 65 0.15 $33.40
J4A103 4 240 350 65 0.15 $33.40
J4A139 4 120 400 74 0.15 $33.40
J4A68 4 240 400 74 0.15 $33.40
J4A16 4 120 500 92 0.15 $33.40
J4A242 4 120 550 100 0.15 $33.40
J4A92 4 240 500 92 0.15 $33.40
J4A198 4 120 750 138 0.15 $33.40
J4A119 4 240 750 138 0.15 $33.40
J4A73 4 240 1000 184 0.15 $33.40
J4J69 4 1/2 120 500 80 0.17 $35.45
J4J57 4 1/2 240 500 80 0.17 $35.45
J4J70 4 1/2 120 750 120 0.17 $35.45
J4J32 4 1/2 240 750 120 0.17 $35.45
$0.00
WATLOW 1/2'' DIAMETER CARTRIDGE HEATERS is available to buy in increments of 1

-

More Information
Manufacturer
Watlow
Product Description
Part Number Sheath Length (inch) Volts Watts Watt Density (W/in2) Approx. Net Wt. (lbs.) Price
J5A85 5 120 200 29 0.19 $37.35
J5A74 5 240 200 29 0.19 $37.35
J5A86 5 120 350 50 0.19 $37.35
J5A63 5 240 350 50 0.19 $37.35
J5A98 5 120 400 58 0.19 $37.35
J5A46 5 240 400 58 0.19 $37.35
J5A52 5 120 500 72 0.19 $37.35
J5A45 5 240 500 72 0.19 $37.35
J5A121 5 120 750 108 0.19 $37.35
J5A72 5 240 750 108 0.19 $37.35
J5A87 5 240 1000 143 0.19 $37.35
J5J38 5 1/2 240 200 25 0.20 $39.20
J5J43 5 1/2 120 500 64 0.20 $39.20
J5J33 5 1/2 240 500 64 0.20 $39.20
J5J69 5 1/2 240 650 83 0.20 $39.20
J5J44 5 1/2 120 750 97 0.20 $39.55
J5J45 5 1/2 240 750 97 0.20 $39.20
J5N6 5 3/4 120 700 86 0.20 $41.10
J5N8 5 3/4 240 700 86 0.20 $40.10
J6A114 6 120 250 29 0.21 $41.00
J6A171 6 240 250 29 0.21 $41.00
J6A66 6 240 300 35 0.21 $41.00
J6A119 6 240 350 41 0.21 $41.00
J6A115 6 120 500 59 0.21 $41.00
J6A94 6 240 500 59 0.21 $41.00
J6A99 6 120 750 88 0.21 $41.00
J6A90 6 240 750 88 0.21 $41.00
J6A53 6 120 1000 117 0.21 $41.00
J6A36 6 240 1000 117 0.21 $41.00
J6J45 6 1/2 240 500 54 0.23 $42.90
J6J27 6 1/2 240 1000 54 0.23 $42.90
J7A79 7 120 250 25 0.24 $44.90
J7A80 7 120 500 50 0.24 $44.90
J7A57 7 240 500 50 0.24 $44.90
J7A50 7 120 600 60 0.24 $44.90
J7A95 7 240 600 60 0.24 $44.90
J7A81 7 240 1000 99 0.24 $44.90
J7J25 7 1/2 240 500 46 0.26 $46.70
J7J26 7 1/2 240 1000 92 0.26 $46.70
J8A71 8 120 300 26 0.28 $48.45
J8A111 8 240 300 26 0.28 $48.45
J8A64 8 120 500 43 0.28 $48.45
J8A66 8 240 500 43 0.28 $48.45
J8A84 8 120 1000 86 0.28 $48.45
J8A60 8 240 1000 86 0.28 $48.45
J8A100 8 240 1500 129 0.28 $48.45
J8A101 8 240 2000 172 0.28 $48.45
J8J39 8 1/2 240 300 24 0.29 $50.10
J8J30 8 1/2 240 500 40 0.29 $50.10
J8J28 8 1/2 240 1000 80 0.29 $50.10
J9A35 9 240 500 38 0.30 $51.70
J9A58 9 240 1000 76 0.30 $51.70
J9J14 9 1/2 240 500 36 0.32 $53.00
J9J12 9 1/2 240 1000 72 0.32 $53.00
J10A61 10 120 500 34 0.33 $54.20
J10A62 10 240 500 34 0.33 $54.20
J10A63 10 120 1000 68 0.33 $54.20
J10A42 10 240 1000 68 0.33 $54.20
J10A33 10 240 1500 102 0.33 $54.20
J10A64 10 240 2000 136 0.33 $54.20
J11A60 11 240 1000 61 0.36 $56.75
J12A63 12 120 500 28 0.40 $59.80
J12A76 12 240 500 28 0.40 $59.80
J12A40 12 120 1000 56 0.40 $59.80
J12A49 12 240 1000 56 0.40 $59.80
J12A37 12 240 1500 84 0.40 $59.80
J12A89 12 240 2000 112 0.40 $59.80
J14A41 14 240 1000 48 0.48 $67.90
J14A39 14 240 2300 110 0.48 $67.90
J15A19 15 240 1500 66 0.5 $71.95
J16A12 16 240 1000 41 0.52 $75.95
J18A19 18 240 1500 55 0.57 $83.90
J18A23 18 240 1700 62 0.57 $83.90
