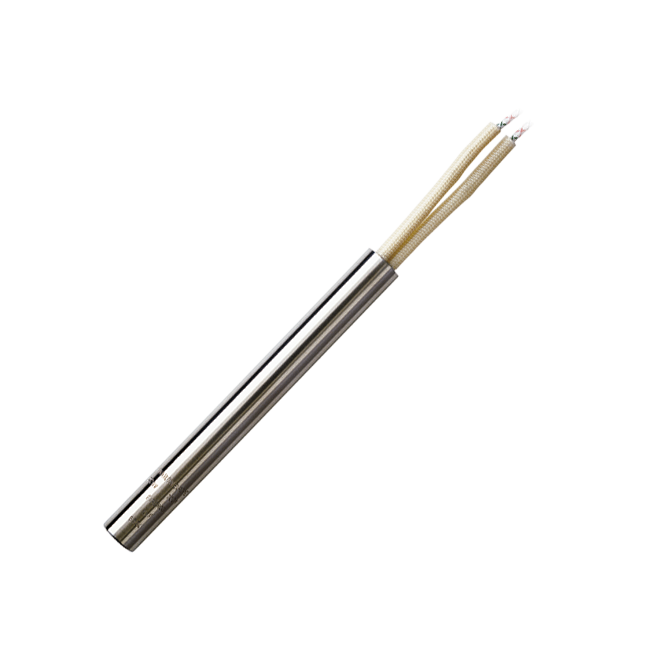

WATLOW 3/8'' DIAMETER CARTRIDGE HEATERS

Part Number:

Part Number Sheath Length (inch) Volts Watts Watt Density (W/in2) Approx. Net Wt. (lbs.) Price
G1A71 1 120 55 95 0.03 $23.90
G1A29 1 120 100 172 0.03 $23.90
G1A38 1 120 150 259 0.03 $23.90
G1A83 1 240 200 344 0.03 $23.90
G1E91 1 1/4 120 100 115 0.03 $24.30
G1E74 1 1/4 120 125 144 0.03 $24.30
G1E92 1 1/4 120 150 172 0.03 $24.30
G1E93 1 1/4 240 150 172 0.03 $24.30
G1E94 1 1/4 120 200 230 0.03 $24.30
G1E95 1 1/4 240 200 230 0.03 $24.30
G1E99 1 1/4 120 400 426 0.03 $24.30
G1J25 1 1/2 120 50 43 0.04 $24.35
G1J70 1 1/2 120 75 65 0.04 $24.35
G1J66 1 1/2 120 80 68 0.04 $24.35
G1J59 1 1/2 120 100 86 0.04 $24.35
G1J110 1 1/2 240 100 86 0.04 $24.35
G1J182 1 1/2 240 125 106 0.04 $25.55
G1J31 1 1/2 120 150 129 0.04 $24.35
G1J39 1 1/2 240 150 129 0.04 $24.35
G1J85 1 1/2 120 200 173 0.04 $24.35
G1J73 1 1/2 240 200 173 0.04 $24.35
G1J86 1 1/2 120 250 216 0.04 $24.35
G1J54 1 1/2 240 250 216 0.04 $24.35
G1N45 1 3/4 120 125 86 0.05 $24.45
G1N46 1 3/4 120 175 122 0.05 $24.45
G1N43 1 3/4 120 250 172 0.05 $24.45
G1N32 1 3/4 240 250 172 0.05 $24.45
G2A53 2 120 50 29 0.06 $24.55
G2A192 2 120 75 42 0.06 $24.55
G2A84 2 120 100 57 0.06 $24.55
G2A76 2 240 100 57 0.06 $24.55
G2A56 2 120 150 86 0.06 $24.55
G2A81 2 240 150 86 0.06 $24.55
G2A127 2 120 200 115 0.06 $24.55
G2A37 2 240 200 115 0.06 $24.55
G2A47 2 120 250 144 0.06 $24.55
G2A73 2 240 250 144 0.06 $24.55
G2A139 2 120 300 172 0.06 $24.55
G2A98 2 240 300 172 0.06 $24.55
G2A153 2 120 400 230 0.06 $24.55
G2A146 2 240 400 230 0.06 $24.55
G2A95 2 120 500 282 0.06 $24.55
G2A97 2 240 500 282 0.06 $24.55
G2E88 2 1/4 120 75 37 0.07 $25.45
G2E89 2 1/4 120 125 62 0.07 $25.45
G2E138 2 1/4 240 125 62 0.07 $25.45
G2E68 2 1/4 240 150 73 0.07 $25.45
G2E90 2 1/4 120 175 86 0.07 $25.45
G2E2 2 1/4 120 250 123 0.07 $25.45
G2E78 2 1/4 240 250 123 0.07 $25.45
G2E108 2 1/4 120 300 148 0.07 $25.45
G2E12 2 1/4 240 300 148 0.07 $25.45
G2E91 2 1/4 120 350 173 0.07 $25.45
G2E75 2 1/4 240 350 173 0.07 $25.45
G2J110 2 1/2 120 200 87 0.07 $26.10
G2J81 2 1/2 240 200 87 0.07 $26.10
G2J46 2 1/2 120 250 108 0.07 $26.10
G2J80 2 1/2 240 250 108 0.07 $26.10
G2J118 2 1/2 120 300 130 0.07 $26.10
G2J119 2 1/2 240 300 130 0.07 $26.10
G2J26 2 1/2 120 400 174 0.07 $26.10
G2J146 2 1/2 240 400 174 0.07 $26.10
G2J109 2 1/2 120 500 216 0.07 $26.10
G2J52 2 1/2 240 500 216 0.07 $26.10
G3A55 3 120 100 34 0.08 $27.20
G3A137 3 240 100 34 0.08 $27.20
G3A121 3 120 150 52 0.08 $27.20
G3A61 3 120 200 69 0.08 $27.20
G3A39 3 240 200 69 0.08 $27.20
G3A52 3 120 250 86 0.08 $27.20
G3A54 3 240 250 86 0.08 $27.20
G3A73 3 120 300 104 0.08 $27.20
G3A92 3 240 300 104 0.08 $27.20
G3A44 3 120 400 138 0.08 $27.20
G3A65 3 240 400 138 0.08 $27.20
G3A119 3 120 500 173 0.08 $27.20
G3A120 3 240 500 173 0.08 $27.20
G3A133 3 240 600 208 0.08 $27.20
G3J77 3 1/2 120 250 72 0.09 $29.00
G3J65 3 1/2 240 250 72 0.09 $29.00
G3J87 3 1/2 120 300 87 0.09 $29.00
G3J68 3 1/2 240 300 87 0.09 $29.00
G3J22 3 1/2 120 500 144 0.09 $29.00
G3J63 3 1/2 240 500 144 0.09 $29.00
$0.00
WATLOW 3/8'' DIAMETER CARTRIDGE HEATERS is available to buy in increments of 1

-

More Information
Manufacturer
Watlow
Product Description
Part Number Sheath Length (inch) Volts Watts Watt Density (W/in2) Approx. Net Wt. (lbs.) Price
G4A54 4 120 125 31 0.09 $30.90
G4A163 4 240 125 31 0.09 $30.90
G4A78 4 120 150 37 0.09 $30.90
G4A191 4 120 175 43 0.09 $30.90
G4A40 4 120 250 62 0.09 $30.90
G4A87 4 240 250 62 0.09 $30.90
G4A94 4 120 300 74 0.09 $30.90
G4A95 4 240 300 74 0.09 $30.90
G4A48 4 120 400 99 0.09 $30.90
G4A44 4 240 400 99 0.09 $30.90
G4A64 4 240 450 109 0.09 $30.90
G4A96 4 120 500 123 0.09 $30.90
G4A92 4 240 500 123 0.09 $30.90
G4A200 4 120 550 134 0.09 $30.90
G4E25 4 1/4 240 300 67 0.09 $31.80
G4E15 4 1/4 240 750 167 0.09 $31.80
G4J54 4 1/2 120 300 65 0.10 $32.65
G4J33 4 1/2 240 300 65 0.10 $32.65
G4J55 4 1/2 120 500 108 0.10 $32.65
G4J37 4 1/2 240 500 108 0.10 $32.65
G5A68 5 120 150 29 0.11 $34.45
G5A56 5 240 150 29 0.11 $34.45
G5A69 5 120 300 58 0.11 $34.45
G5A70 5 240 300 58 0.11 $34.45
G5A38 5 120 500 96 0.11 $34.45
G5A71 5 240 500 96 0.11 $34.45
G5A67 5 240 750 144 0.11 $34.45
G5A115 5 240 1000 192 0.11 $34.45
G5E16 5 1/4 240 200 45 0.12 $35.45
G5J36 5 1/2 240 600 104 0.12 $36.40
G5J45 5 1/2 240 1000 173 0.12 $36.40
G6A80 6 120 200 31 0.13 $38.05
G6A40 6 120 250 39 0.13 $38.05
G6A92 6 240 250 39 0.13 $38.05
G6A81 6 120 400 63 0.13 $38.05
G6A82 6 240 400 63 0.13 $38.05
G6A125 6 120 500 79 0.13 $38.05
G6A59 6 240 500 79 0.13 $38.05
G6A56 6 120 600 94 0.13 $38.05
G6A51 6 240 600 94 0.13 $38.05
G6A46 6 240 750 117 0.13 $38.05
G6A83 6 240 1000 157 0.13 $38.05
G6J23 6 1/2 240 600 86 0.14 $39.75
G6J33 6 1/2 240 1000 144 0.14 $39.75
G7A40 7 120 250 33 0.14 $41.35
G7A32 7 240 250 33 0.14 $41.35
G7A30 7 240 500 65 0.14 $41.35
G7A41 7 120 600 80 0.14 $41.35
G7A42 7 240 600 80 0.14 $41.35
G7A43 7 240 1000 133 0.14 $41.35
G7J27 7 1/2 240 600 74 0.15 $43.30
G7J28 7 1/2 240 1000 124 0.15 $43.30
G8A54 8 120 300 34 0.16 $45.05
G8A47 8 240 300 34 0.16 $45.05
G8A109 8 120 400 45 0.16 $45.05
G8A81 8 120 500 58 0.16 $45.05
G8A32 8 240 500 58 0.16 $45.05
G8A53 8 120 600 69 0.16 $45.05
G8A37 8 240 600 69 0.16 $45.05
G8A98 8 240 700 79 0.16 $45.05
G8A45 8 240 1000 115 0.16 $45.05
G9A37 9 240 1000 100 0.18 $47.95
G9J20 9 1/2 240 600 57 0.19 $49.15
G9J12 9 1/2 240 1000 96 0.19 $49.15
G10A48 10 120 400 36 0.19 $50.40
G10A35 10 120 600 54 0.19 $50.40
G10A31 10 240 600 54 0.19 $50.40
G10A32 10 240 1000 91 0.19 $50.40
G12A45 12 120 400 30 0.22 $55.90
G12A29 12 120 600 45 0.22 $55.90
G12A46 12 240 600 45 0.22 $55.90
G12A47 12 240 1000 75 0.22 $55.90
