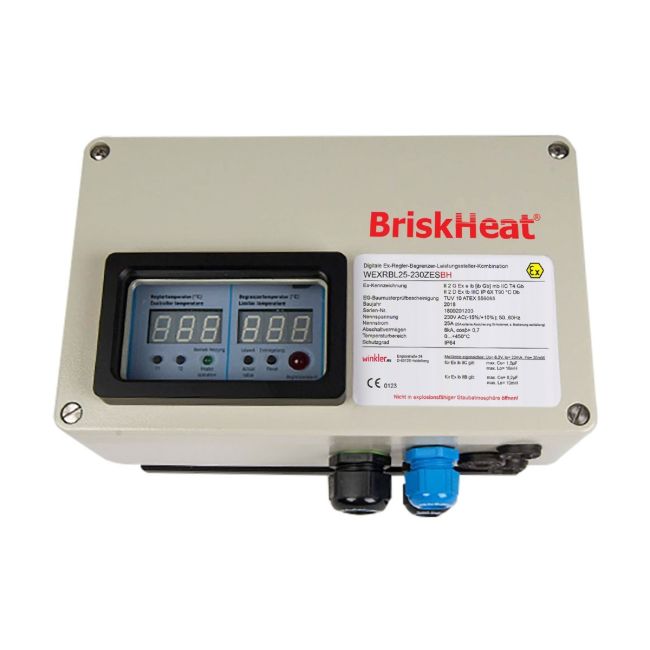

BRISKHEAT ATEX TEMPERATURE CONTROLLER/LIMITER COMBO

ATEX Temperature Controller For Use with ATEX Heaters. 230 VAC. Max Output 25 A. Dimensions 260 mm x 160 mm x 135 mm. Includes 2 Ex-PT100 RTD Temperature Sensor Inputs. Programmable Digital Controller with Celcius Display. Temperature Control Range 0°C to 150°C. Maximum Controller Operating Exposure Temperature Range -20°C to 40°C. For Use in Potentially Explosive Gas and Dust Atmospheres. IP64. ATEX II 2G Ex e ib [ib Gb] mb IIC T4 Gb, II 2D Ex tb IIIC IP6X T90°C Db, EC-type examination certificate TÜV 10 ATEX 556065.

BriskHeat
from BriskHeat

$2,479.00
BRISKHEAT ATEX TEMPERATURE CONTROLLER/LIMITER COMBO is available to buy in increments of 1
ATEX Temperature Controller For Use with ATEX Heaters. 230 VAC. Max Output 25 A. Dimensions 260 mm x 160 mm x 135 mm. Includes 2 Ex-PT100 RTD Temperature Sensor Inputs. Programmable Digital Controller with Celcius Display. Temperature Control Range 0°C to 150°C. Maximum Controller Operating Exposure Temperature Range -20°C to 40°C. For Use in Potentially Explosive Gas and Dust Atmospheres. IP64. ATEX II 2G Ex e ib [ib Gb] mb IIC T4 Gb, II 2D Ex tb IIIC IP6X T90°C Db, EC-type examination certificate TÜV 10 ATEX 556065.

Specifications:

  • Voltage: 195-253 (230 nominal) VAC 50-60 Hz
  • Max. Amp Load: 25 amp
  • Temperature Control Type: On/Off
  • Temperature Control Range: 0°C to 450°C (32°F to 42°F)
  • Temperature Display Units: °C
  • Sensor Inputs: 2 PT100 RTD (2 or 3-wire) terminals for control and limit
  • Limit Switching Point: 2°C below set point temperature
  • Hysteresis: 2° K
  • Alarms: LED indicators with dry contacts
  • External Protection: 25 amp circuit breaker
  • Input and Output Power Connections: Strain relief cable glands included
  • Temperature Protection: Reversible temperature switch for enclosure
  • Enclosure Type: Robust aluminum enclosure with mounting plates and hardware
  • Enclosure Rating: IP64
  • Ambient Operating Range: -20°C to 40°C
  • Enclosure Dimensions: 260 mm x 160 mm x 135 mm (10.2 in x 6.3 in x 5.3 in)
  • Weight: 6 kg (13 lbs)

BriskHeat
from BriskHeat

More Information
Manufacturer
BriskHeat
