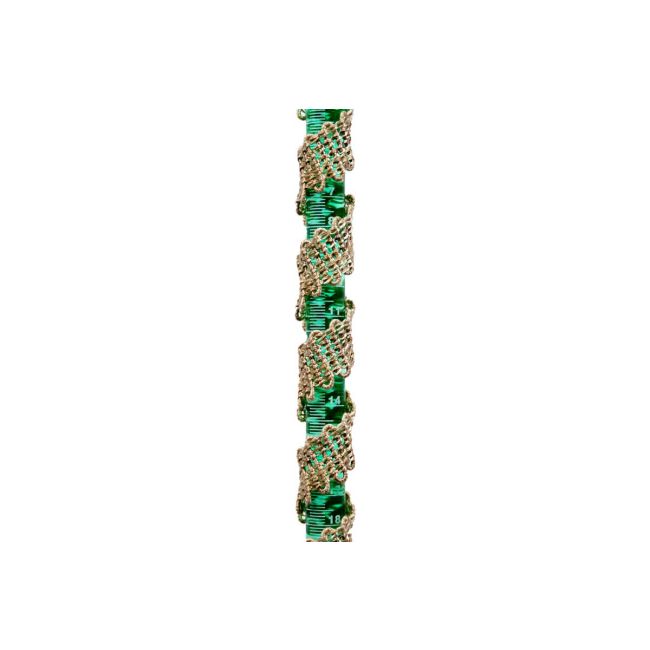

Briskheat B00 Standard Insulated Heating Tape
B00 Standard Insulated Heating Tape
- Rapid thermal response provides accurate heat when you need it.
- Available in a wide variety of length and width configurations.
- Ideal for laboratory heating applications for apparatus, gas tubing, temporary heat, and more.
- Safe for use with glass and non-electrically conductive surfaces only.
- Includes 9" (230mm) long high temperature tie downs for safe and easy installation.
- Temperature controller is required for safe operation of this product.
- Built-in split-plug design easily connects to your choice of temperature controlling device.
from BriskHeat
As low as
$41.00
Briskheat B00 Standard Insulated Heating Tape is available to buy in increments of 1
B00 Standard Insulated Heating Tape
Overview:
- Rapid thermal response provides accurate heat when you need it.
- Available in a wide variety of length and width configurations.
- Ideal for laboratory heating applications for apparatus, gas tubing, temporary heat, and more.
- Safe for use with glass and non-electrically conductive surfaces only.
- Includes 9" (230mm) long high temperature tie downs for safe and easy installation.
- Temperature controller is required for safe operation of this product.
- Built-in split-plug design easily connects to your choice of temperature controlling device.
- Maximum exposure temperature: 900°F (482°C)
-
Construction:
- Fiberglass knit and braided heating element
-
Power density:
- Standard: 8.6 W/in2 (0.013 W/mm2 )
-
24" (610mm) power leads with:
- 120VAC: Separable standard 2-prong power plug (NEMA 1-15)
- 240VAC: Bare wire connection
-
,
Accessories - X2 Digital PID Benchtop Temperature Controller
BriskHeat® X2 Benchtop PID Digital Temperature Controller is designed for general purpose use in indoor environments to control temperatures on applications requiring automatic control. The controller provides a simple three-key user control and a plug-and-play set-up.-
Key User Features:
- Compact, plug and play design: 6.39" W x 9.48"D x 1.99"H
- Simple, three-key user control
-
Programmable temperature range: 32°F to 1400°F (0°C to 760°C)
- Accuracy: Type-J +/- 0.9°F (0.50°C) Type-K +/- 0.5°F (0.25°C)
- Programmable in either °C or °F
- Auto / manual control ability
- Advanced PID control
-
Alarm and Protection Features:
- User programmable alarm types, including latching options
- Programmable security lock levels
- Fused input
- Sensor break protection with average output options which allows process to continue heating
- Sensor Input: Type J or K thermocouple
from BriskHeat
