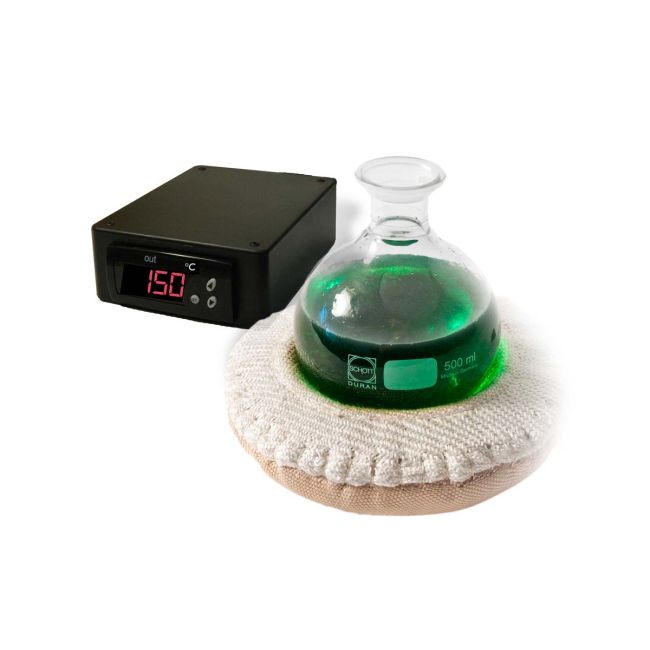

BriskHeat Lower Hemispherical Heating Mantle with SDC Digital Temperature Controller K-Type Thermocouple

Lower Hemispherical Heating Mantle with SDC Digital Temperature Controller (Special Bundle Price); K-Type Thermocouple

  • Special bundle price
  • Apply uniform heat to round-bottom flasks
  • Excellent alternative to other heating methods like a Bunsen burner
  • Ideal for use with a basket ring stand

Lower Hemispherical Heating Mantle

  • Uniform, low-watt density heating element
  • Maximum exposure temperature: 450°C (842°F)
  • Fiberglass cloth outer shell

SDC Benchtop Digital Temperature Controller

  • Compact, digital on / off temperature controller
  • Easy programming (°C or °F)
  • Temperature control range: 0- 600°C or 32-999°F
  • Compatible with a wide range of heaters and applications
  • 10 amp fused output
  • Includes built-in thermocouple (K Type)

Bundles include:

  1. Standard SDC Benchtop temperature controller (120VAC) with built-in 5' (1.5m) long J-Type or K-Type thermocouple sensor (see ordering information)
  2. Lower Hemispherical Heating Mantle

Note: Heater with different voltage, size, or wattage (Contact us for detailed quotation)



BriskHeat
from BriskHeat

As low as $371.00
BriskHeat Lower Hemispherical Heating Mantle with SDC Digital Temperature Controller K-Type Thermocouple is available to buy in increments of 1

Lower Hemispherical Heating Mantle with SDC Digital Temperature Controller (Special Bundle Price); K-Type Thermocouple

  • Special bundle price
  • Apply uniform heat to round-bottom flasks
  • Excellent alternative to other heating methods like a Bunsen burner
  • Ideal for use with a basket ring stand

Lower Hemispherical Heating Mantle

  • Uniform, low-watt density heating element
  • Maximum exposure temperature: 450°C (842°F)
  • Fiberglass cloth outer shell

SDC Benchtop Digital Temperature Controller

  • Compact, digital on / off temperature controller
  • Easy programming (°C or °F)
  • Temperature control range: 0- 600°C or 32-999°F
  • Compatible with a wide range of heaters and applications
  • 10 amp fused output
  • Includes built-in thermocouple (K Type)

Bundles include:

  1. Standard SDC Benchtop temperature controller (120VAC) with built-in 5' (1.5m) long J-Type or K-Type thermocouple sensor (see ordering information)
  2. Lower Hemispherical Heating Mantle

Note: Heater with different voltage, size, or wattage (Contact us for detailed quotation)



  • Fiberglass cloth outer shell
  • Uniform, low-watt density knitted and braided heating element. Temperatures up to 900oF (482oC).
  • Multi-stranded resistance wire for increased durability and flexibility
  • 120VAC model includes 3" (76mm) lead wire with NEMA L1-15R connector and a 4 foot (1.2m) power cord with NEMA 1-15 plug
  • 240VAC model includes 3" (76mm) lead wire with no plug
  • Temperature controller required

SDC Benchtop Digital Temperature Controller

  • Small Unit Size:
    • 5.5 in L x 4.25 in W x 1.75 in H
    • 140 mm L x 108 mm W x 45 mm H
  • On-Off control
  • Temperature Control Range: 32-999°F (°F models) or 0-700°C (°C models)
    • Accuracy: +/- 1% FS
  • Includes J-type or K-type thermocouple sensor
    • 5-foot (1.5 m) factory installed
  • 120 VAC or 240 VAC power input
  • Relay output rated for 10A @ 240VAC
  • Sensor break options
  • Upper and lower limits of the setpoint can be adjusted
  • Set-point value can be adjusted by using single key
  • Hysteresis adjustable between 1 and 99°F/°C
  • Exposure Temperature: 32-158°F (0-70°C)
    • 80% humidity non-condensing
  • 5-foot (1.5 m) input power cord
    • 120VAC unit = NEMA 5-15 plug
    • 240VAC unit = NEMA 6-15 plug
  • 5-foot (1.5 m) output power cord
    • 120VAC unit = NEMA 5-15R receptacle
    • 240VAC unit = NEMA 6-15R receptacle
  • Internal buzzer for alarm condition / error

* Other plug receptacle options available contact us for more information



BriskHeat
from BriskHeat

More Information
Manufacturer
BriskHeat
