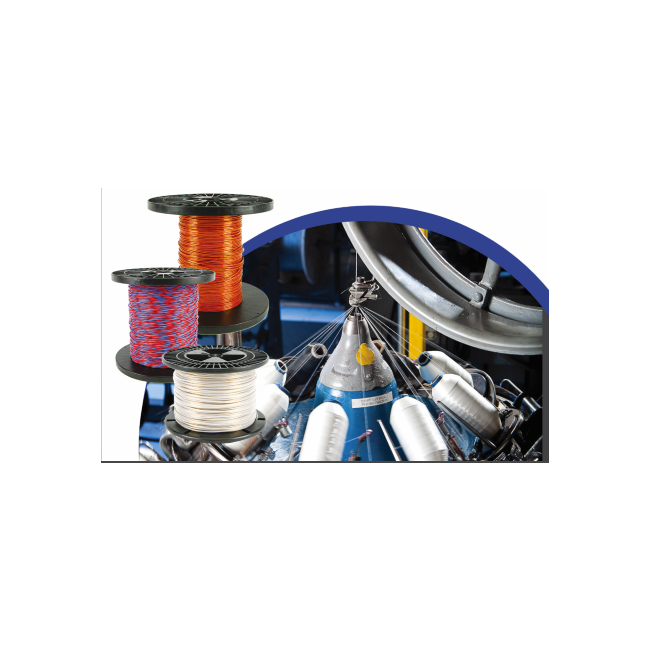

Custom Wire and Cable Solutions

Therm-x can design and manufacture wire and cable products to meet any demanding environment. Our innovative engineering team will help turn your unique design into a custom solution.

Thermocouple Wire

  • Bare and Insulated Thermocouple Wire Stock
  • Sized down to 44 AWG
  • ANSI and IEC Color Codes
  • Industry Standard & Custom Colors Available
  • Temperature Ranges from -270°C to 1300°C (-450°F to 2372°F)
  • Specialty, Multi-Pair, & RTD Hook-Up wires available

Common Constructions

  • Type T Thermocouple
  • Type J Thermocouple
  • Type E Thermocouple
  • Type K Thermocouple
  • Type N Thermocouple
  • Type B Thermocouple
  • Type R Thermocouple
  • Type S Thermocouple


Solid & Stranded Resistance Wire

  • Using bare & insulated wire from 2-50 AWG

Floor Heating

Electric Heaters

Heated Seats

Electrofusion

Leak Detection

Composite Curing

Heating Elements

Heated Hoses

Heat-Trace Cables

Medical Applications

Freeze Detection

And more

Large Variety of Alloys in Stock

Alloy 800 (Evanohm)

Alloy 290 (Manganin)

Alloy 30

Alloy 650 (nichrome 80)

Alloy 180 (Midohm)

Alloy 60

Alloy 675 ( Nichrome 60)

Alloy 120 (Balco)

Alloy 90

Alloy 433 (Stainless Steel)

Alloy 57 (Nickel 200)

Alloy 815

Alloy 294 (Advance)

Alloy 10 (Copper)

Alloy 875

Glass Core Heater Wire

  • Designed for applications where a high amount of wattage per foot is required
  • Glass cord with sprained high temperature resistance wire
  • Resistance values up t and over 10,000 Ohms/ft.
  • Available in a variety of finish insulations

Variable Wattage

  • Unique manufacturing capabilities that allow for one continuous cable to have multiple heating areas
  • Custom Designed for variety of applications

Insulating Materials

Temperature Range: from -270°C to 1300°C

Thermoplastic, Fluoropolymer Tape and Textile insulations including:

Extrusion

ECA

ETFE

FEP

NYLON

PFA

PVC

TPU

TPE

XLPE



Tape

Polyimide

PTFE/TFE

Mica



Textile

Glass

S-Glass

E-Glass

Ceramic

Vitreous Silica

Cotton

Polyester



Custom Services

Bunch

Bundling

Cable

Coil

Cut

Extrude

Metal Braid

Print

Serve

Strand

Strip

Stripe

Tape

Textile Braid

Tube

Twist

Wrap







Braid Shields

Stainless Steel

Tin Plated Copper

Nickel Plated Copper

Custom Material



$0.00
Custom Wire and Cable Solutions is available to buy in increments of 1

Therm-x can design and manufacture wire and cable products to meet any demanding environment. Our innovative engineering team will help turn your unique design into a custom solution.

Thermocouple Wire

  • Bare and Insulated Thermocouple Wire Stock
  • Sized down to 44 AWG
  • ANSI and IEC Color Codes
  • Industry Standard & Custom Colors Available
  • Temperature Ranges from -270°C to 1300°C (-450°F to 2372°F)
  • Specialty, Multi-Pair, & RTD Hook-Up wires available

Common Constructions

  • Type T Thermocouple
  • Type J Thermocouple
  • Type E Thermocouple
  • Type K Thermocouple
  • Type N Thermocouple
  • Type B Thermocouple
  • Type R Thermocouple
  • Type S Thermocouple

logo Thermocouple Wire Specifications
T/C Type Single color Ansi Color Coding
Overall Extension
Overall thermocouple Conductor Alloys Temperature Range°F(°C)
Thermocouple Grade
Extension Grade
Tolerance(standard)
/ whichever is Greater
Tolerance(Special)
/ whichever is Greater
E Purple
Red
Purple Brown EP/EN Chromel/Constantan -328 to 1652
(-200 to 900)
32 to 392
(0 to 200)
+-1.7 deg C
or +-0.5%
+-1.0 deg C
or +-0.4%
J White
Red
Black Brown JP/JN Iron/Constantan 32 to 1382
(0 to 750)
32 to 392
(0 to 200)
+-2.2 deg C
or +-0.75%
+-1.1 deg C
or +-0.4%
K Yellow
Red
Yellow Brown KP/KN Chromel/Alumel -328 to 2282
(-200 to 1250)
32 to 392
(0 to 200)
+-2.2 deg C
or +-0.75%
+-1.1 deg C
or +-0.4%
N Orange
Red
Orange Brown NP/NN Nicrosil/Nisil -450 to 2372
(-270 to 1300)
32 to 392
(0 to 200)
+-2.2 deg C
or +-0.75%
(2% below 0 deg C)
+-1.1 deg C
or +-0.4%
T Blue
Red
Blue Brown TP/TN Copper/Constantan -328 to 662
(-270 to 350)
32 to 392
(0 to 200)
+-2.2 deg C
or +-0.75%
(1.5% below 0 deg C)
+-0.5 deg C
or +-0.4%
B Grey
Red
Grey None BP/BN Platinum 30% Rhodium
Platinum 6% Rhodium
32 to 3092
(0 to 1700)
32 to 212
(0 to 100)
+-3.7 deg C
or +-0.5% over 800 deg C
NOT ESTABLISHED
C White
Red
White
Red Trace
None CP/CN Tungsten 5% Rhenium
Tungsten 26% Rhenium
32 to 4208
(0 to 2320)
32 to 1600
(0 to 870)
+-4.5 deg C to or 425 deg C
1% to 2320 deg C
NOT ESTABLISHED
R/S Black
Red
Green None RP/RN R=Platinum/13% Rhodium
S=10% Rhodium/Pure Platinum
32 to 2462
(0 to 1450)
32 to 300
(0 to 150)
1.5 deg C or .25% .6 deg C or .1%
